Super Foam 224 is low- free rise density rigid spray foam that has excellent thermal conductivity, dimensional stability, and adhesion to the ground surface. In addition, generation and form uniformly and continuously followed by good mechanical properties and resistance to water absorption, and by the suitable reactive workability is excellent and can be constructed regardless of the season.

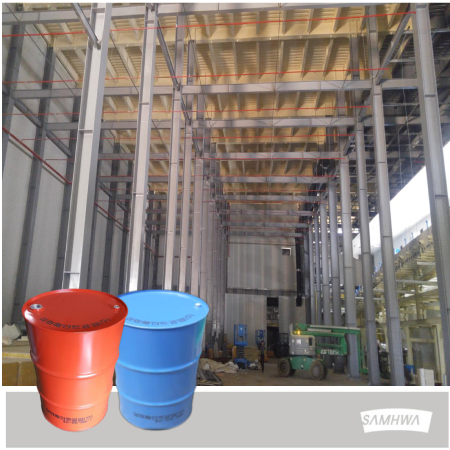

  • Internal insulation of factory, general building, housing, gymnasium.
  • Polyurea insulation coating system.
View more

1. Surface treatment

  • The recommended primer and the intermediate coated surface should be clean to prevent moisture, oil, dust, and other foreign matter.

2. Weather condition

  • Air temperature: 0 ~ 40 °C
  • Surface temperature: 0 ~ 40 °C
  • Relative humidity: 80% or less
  • Wind speed: 15 mph or less (without windshield)
  • The surface temperature should be at least 3 °C above the dew point temperature to prevent condensation.

3. Spray equipment

  • Graco HPE-10, E-10, EXP-2, HXP-3

4. Caustion for usage

  • Avoid painting on rainy days, high humidity (80% or more), low temperature (-5 °C or lower), etc. has exist)
  •  Before using this product, stir thoroughly with a motorized dissolver in the <Part B> with the color. Colors may appear differently due to sedimentation of the toner.
  • Proper primer coating should be done according to the type of substrate.
  • Based on normal temperature (25 °C), after curing for 7 days, it can be expected to complete physical property.

5. Warning

  • Please refer to the warning in the appendix.

6. Application system

  • Primer : SUPERDECK 100, SUPERDECK 110,
  • Intermediate 1 : SUPERDECK 170, SUPERDECK 180, SPEEDDECK 102PLUS
  • Intermediate 2 : SUPERDECK H-290LC
  • Top coat : SUPERDECK 300 (If necessary)
View more
Applied over Concrete, Steel Components 2
Cream time (sec, 20℃) 3.5 ± 1.5
Rise time (sec, 20℃)
14 ± 3
Free rise density (Kg/ ㎥)
24 ± 1
Thermal conductivity (W/m.K)
≤ 0.023
Compressive strength (Kgf/㎠)
1.2 ≥
Mixing ratio
1 : 1 (vol)
Packing Unit

<A>: 250Kg
<B>: 230Kg

Shelf Life 6 months (0~15℃)
2 months (20~25℃)
1 months (30~35℃)
View more
